R/1 Ultegra - Black Cherry
R/1 Ultegra - Black Cherry
Regular price
$108,000.00 TWD
Regular price
Sale price
$108,000.00 TWD
Unit price
per
Couldn't load pickup availability
The R/1 Ultegra brings traditional racing performance and unmatched quality only a VAAST Super Magnesium frame can deliver, making for a capable road machine.
The aerodynamic R/1 road bike has been optimized for design - with speed, aerodynamics, weight and agility in mind. Weighing only 1250 grams, the Allite Super Magnesium? frame offers a weight and performance ratio unmatched by other metal frames, and is built with road geometry for a perfect fit no matter the size of the rider.Utilize VAAST V-Fit parameters for comfort and control, and the head tube and seat tube angles have been engineered to give you a confident ride and good tracking when turning.Unlike our acclaimed gravel road bike, the A/1, the R/1 tube shape has been reimagined to take advantage of super magnesium alloys and Compared with the traditional cylindrical tubular metal frame, the aerodynamic performance is optimized by 30%.In addition, it also provides enough tire clearance to fit tires up to 30mm, or 25/28mm wide when fitted with fenders.All these advantages, combined with carbon fiber wheels, and an exclusive carbon fiber fork and seat tube, make it a road ride that is enough to take you in the wind.
Lightweight, aerodynamic, fast¡Xthis is the all-new VAAST Model R/1.
The aerodynamic R/1 road bike has been optimized for design - with speed, aerodynamics, weight and agility in mind. Weighing only 1250 grams, the Allite Super Magnesium? frame offers a weight and performance ratio unmatched by other metal frames, and is built with road geometry for a perfect fit no matter the size of the rider.Utilize VAAST V-Fit parameters for comfort and control, and the head tube and seat tube angles have been engineered to give you a confident ride and good tracking when turning.Unlike our acclaimed gravel road bike, the A/1, the R/1 tube shape has been reimagined to take advantage of super magnesium alloys and Compared with the traditional cylindrical tubular metal frame, the aerodynamic performance is optimized by 30%.In addition, it also provides enough tire clearance to fit tires up to 30mm, or 25/28mm wide when fitted with fenders.All these advantages, combined with carbon fiber wheels, and an exclusive carbon fiber fork and seat tube, make it a road ride that is enough to take you in the wind.
Lightweight, aerodynamic, fast¡Xthis is the all-new VAAST Model R/1.
R/1 Ultegra 700C 尺寸與規格
R/1 sizing chart
| ?SIZAND | XS | S | M | L | XL | XXL | |
| suitable Height (cm) | 155-163 | 160-170 | 167-177 | 174-184 | 180-188 | 188-196 | |
| E | RANDACH | 365 | 370 | 380 | 388 | 400 | 413 |
| F | STACK | 500 | 510 | 540 | 565 | 590 | 610 |
| H | WHEELBASE | 973 | 973 | 988 | 990 | 1009 | 1029 |
| I | CHAINSTAY Length | 410 | 410 | 410 | 410 | 410 | 410 |
| J | FRONT CENTER | 575 | 575 | 591 | 590 | 610 | 629 |
| K | BB DROP | 75 | 75 | 72 | 72 | 69 | 69 |
| L | BB Height | 269 | 269 | 272 | 272 | 275 | 275 |
| M | SEAT TINBE angle | 75.5 | 74.5 | 73.5 | 73 | 73 | 73 |
| N | HEAD TINBE angle | 70.5 | 71.5 | 72 | 73 | 73 | 73 |
| U | SEAT TINBE Length | 470 | 500 | 520 | 540 | 560 | 580 |
| G | TOP TINBE Length (horizontal) | 494 | 511 | 540 | 561 | 580 | 600 |
| P | HEAD TINBE Length | 94 | 101 | 129 | 153 | 183 | 204 |
| Q | STANDOVER Height | 722 | 742 | 766 | 788 | 812 | 832 |
| FORK RAKE/offset | 52 | 52 | 52 | 45 | 45 | 45 | |
| FORK Length full | 375 | 375 | 375 | 375 | 375 | 375 | |
| T | TRAIL | 58.6 | 58.6 | 55.5 | 56.6 | 56.6 | 56.6 |
| SEATPOST Length | 300 | 300 | 350 | 350 | 350 | 350 | |
| CRANK Length | 165 | 170 | 172.5 | 172.5 | 175 | 175 | |
| B | STEM Length: Force AXS | 90 | 90 | 105 | 105 | 120 | 120 |
| B | STEM Legnth: Ultegra, 105 | 70 | 90 | 100 | 100 | 120 | 120 |
| HANDLEBAR Width: Force AXS | 400 | 400 | 420 | 420 | 440 | 440 | |
| TRADABLE Width: Ultegra, 105 | 380 | 400 | 420 | 420 | 440 | 440 |
?
?
?
R/1 Ultegra 規格表
| Components | Part | |
| frame? | Frame | Road 700c disc, AE81 SuperMag, VAAST Road geometry, internal cable routing, fender ready. Up to 30mm tire clearance |
| frame weight | Frame Weight | 1250g |
| front fork | Fork | VAAST Road full-carbon disc. Up to 30mm tire clearance |
| tire | Tires | Vittoria Rubino Pro, 700 x 25mm w/Ultralight tubes |
| Maximum tire width | Max Tire Clearance | 30mm |
| rim | Rims | VAAST Aero 30mm Aluminum, Tubeless Ready |
| brake disc | Rotors | Shimano RT800 160mm |
| crank | Crank | Praxis Zyante carbon 50/34t w/ M30 axle |
| flywheel | Cassette | Shimano Ultegra R8000, 11-speed, 11-30t |
| transmission | Shifter | Shimano Ultegra Disc R8020 |
| rear derailleur | RD | Shimano Ultegra R8000, 11-speed |
| front gear | FD | Shimano Ultegra R8000, braze-on |
| chain | Chain | KMC X11 11-speed |
| brake | Brakes | Shimano Ultegra R8070, hydraulic disc |
| five trues | Bottom Bracket | Praxis T47 IB Enduro Bearings |
| front hub | Hub F | Sealed cartridge bearing, 12 x 100mm thru axle, Centerlock, 24H |
| rear hub | Hub R | Sealed cartridge bearing, 11-speed, 12 x 142mm thru axle, Centerlock, 24H |
| Spoke | Spokes | Bladed Double butted stainless |
| axle | Axles | VAAST M12 w/Removable lever |
| handle | Handlebar | VAAST Aero Carbon |
| faucet | Stem | VAAST Aero Pro, 3D forged, 8 degree |
| belt | Grips / Tape | VAAST Anti Slip |
| Seatpost | Seat Post | VAAST Carbon fiber, (300mm 49/52, 350mm 54/56/58/60) |
| seat cushion | Saddle | ProLogo Scratch M5 PAS w/T2.0 rails |
A RIDE FEEL LIKE NO OTHER

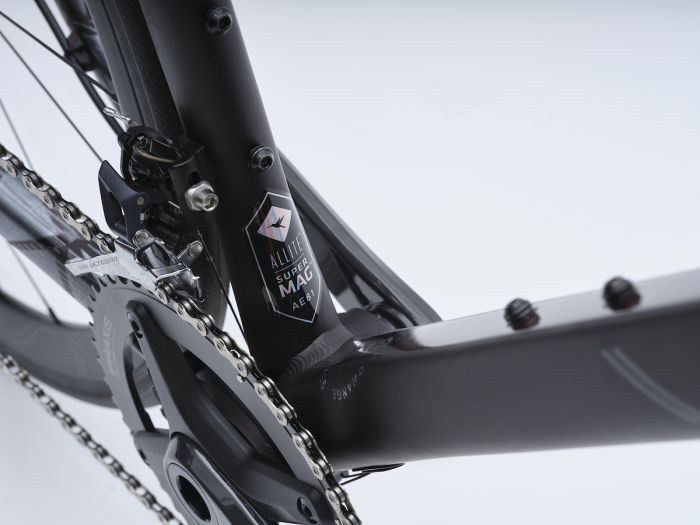

VAAST Bikes is the first to use ALLITE? SUPER MAGNESIUM?, a true innovation in material science. This high-strength alloy features excellent shock absorption properties, weighs 33% less than Aluminum and 50% less than Titanium by volume, and is significantly stronger than both. Through the exclusive use of this eco-friendly metal, we have achieved a ride that feels like no other.
COMMITTED TO A VIBRANT CYCLING ECOLOGY
From the beginning we¡¦ve been inspired to promote the responsible use of materials and responsible riding in all its forms.
Our frames are more sustainably made and they¡¦re 100% recyclable. We were also the first bike brand to use 100% fiber-based, plastic-free packaging.
