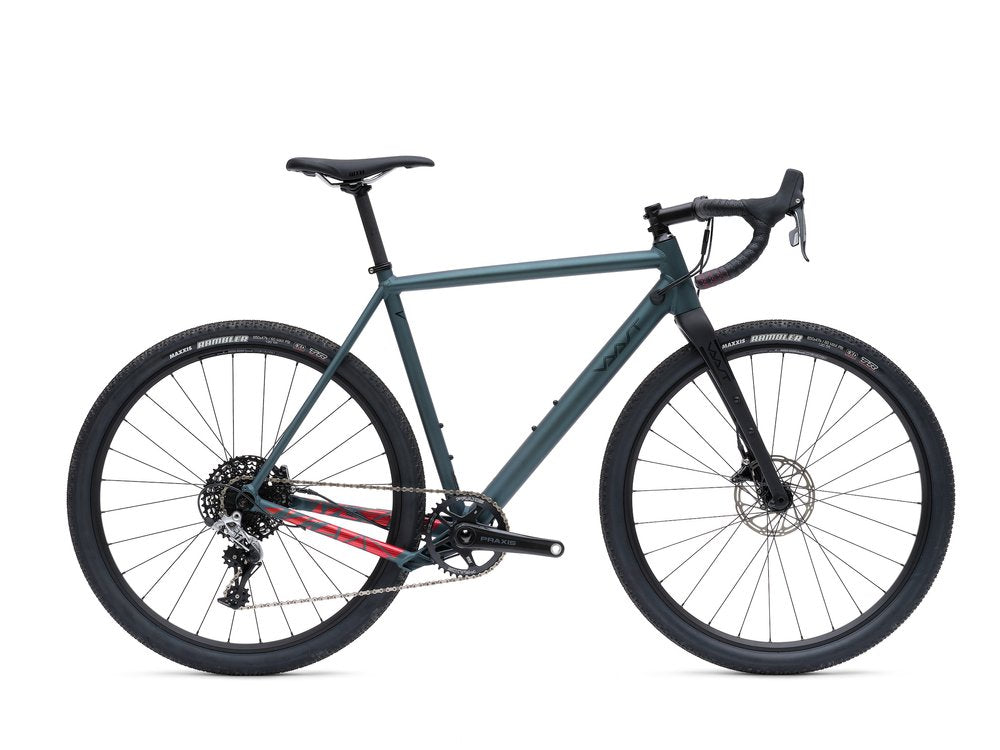

A/1 Rival 650b - Matte Sea Blue

A/1 Rival 650b - Matte Sea Blue

$99,000.00 TWD
$99,000.00 TWD
Sale Sold out
Size
Offering a higher quality, lighter 1x setup and wider tires, the A/1 Rival 650b is perfect for those seeking more comfort and control on more technical trails and craving the smoothness that SRAM Rival groupsets are known for Sexual knight shopping.

The A/1's frame geometry allows this bike to comfortably conquer gravel, yet be efficient and fast on flat surfaces.Equipped with mounts, you can easily install fenders and racks in the front or rear to keep your commuter ride safe and dry.
View full details

A/1 Rival 700c sizing and spec

?SIZE XS
50 cm 		S
52 cm 		M
54 cm 		L
56 cm 		XL
58 cm
R REACH 356 365 380 395 410
S STACK 514 536 563 595 620
TR TRUE REACH 430 439 455 471 486
TS TRUE STACK 566 588 615 647 672
2 TOP TUBE Length, Horizontal 518 534 557 583 605
3 WHEELBASE 998 1008 1023 1038 1061
4 CHAINSTAY Length 425 425 425 425 425
5 FRONT CENTER 582 592 607 623 645
6 BB DROP 68 68 68 68 68
BB HEIGHT 278 278 278 278 278
7 SEAT TUBE angle 72.5 72.5 72.5 72.5 72.5
8 HEAD TUBE angle 69.5 70 71 72 72
9 SEAT TUBE Length 500 520 540 560 580
10 HEAD TUBE Length 95 115 140 170 195
11 STANDOVER Height 754 774 797 821 841
12 SEAT TUBE Length inches 19.7 20.8 21.6 22.4 23.2
13 CRANK Length 170 170 172.5 172.5 175
14 STEM Length 90 90 90 90 90
15 HANDLEBAR Width 400 400 420 420 440

?

?

?

Components Part
frame Frame Allround-Allroad 700c/650b disc - ? AE81 ALLITE Super Mag - VAAST Allroad geometry - internal cable routing - dropper post ready. Rack and fender ready
frame weight Frame Weight 1300g
front fork Fork VAAST Allround-Allroad full-carbon disc - rack & fender ready
tire Tires Maxxis Rambler 650x47b 120tpi - EXO/Tubeless Ready
Maximum tire width Max Tire Clearance 650b, 50mm / 700c, 42mm
rim Rims Stans Notubes Crest 27.5
brake disc Rotors SRAM Centerline 160mm
crank Crank Praxis Zyante carbon 42T w/ M30 axle
flywheel Cassette SRAM 11-42 - 11-Speed
transmission Shifters SRAM Rival 1
rear derailleur RD SRAM Rival 1 11sp Long cage
front gear FD n/a
chain Chain SRAM 11sp
brake Brakes SRAM Rival 1 Hydraulic
five trues Bottom Bracket Praxis T47 IB Enduro Bearings
front hub Hub F Sealed cartridge bearing - 12 x 100mm thru axle - Centerlock - 28H
rear hub Hub R Sealed cartridge bearing - 11-speed - 12 x 142mm thru axle - Centerlock - 28H
Spoke Spokes Double butted stainless
axle Axles VAAST M12
handle Handlebar VAAST Allroad Pro, butted 6061 aluminum
faucet Stem VAAST Allroad Pro, 3D forged, 6 degree
belt Grips / Tape VAAST Anti Slip
Seatpost Seat Post VAAST Carbon fiber 27.2mm (300mm XS/S/M. 350mm L/XL)
seat cushion Saddle WTB Volt 142 Comp

LIGHTER, STIFFER, PROFOUNDLY BETTER.

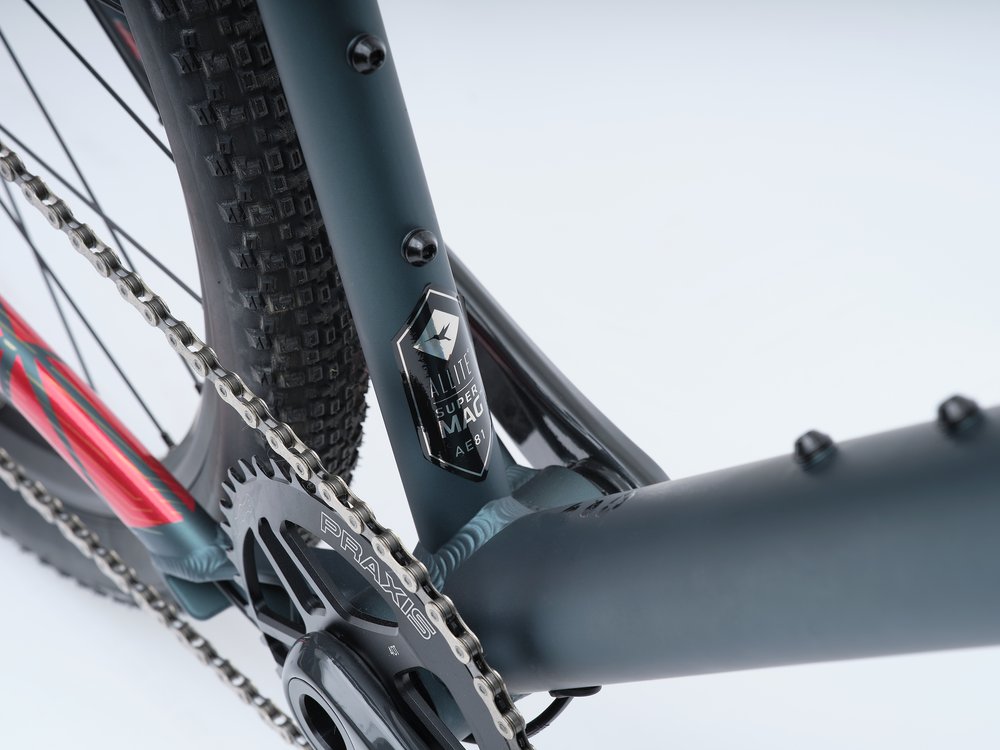

VAAST Bikes is the first to use ALLITE? SUPER MAGNESIUM?, a true innovation in material science. This high-strength alloy features excellent shock absorption properties, weighs 33% less than Aluminum and 50% less than Titanium by volume, and is significantly stronger than both. Through the exclusive use of this eco-friendly metal, we have achieved a ride that feels like no other.

VERSATILE | ONE FRAME, TWO WHEELSETS

The Model A/1 supports both 650b and 700c with a frame, with 700c wheels and room for up to 42mm tires. While the switching to 650b wheelset will offer extra room up to 50c.

It is just a tire swap away and has been designed for riders who want the perfect blend of gravel capability without giving up anything on paved road group rides or their daily commute.

GEOMETRY THAT KNOWS YOUR NEEDS

The A/1 encourages you to go further yet stay comfortable and confident. The longer wheelbase and lowered bb drop compared to traditional road bikes are to give you more stability and handling in tactical terrain.

While the relaxed geometry is an art that combines endurance ride, gravel ride, and bike touring, all in one frame.
